Infoscan 3D 90

  • Handling capacity 400 parcels/hour, error-free
  • Automatically transfers barcode and DWS data to any WMS or ERP system
  • Free integration of our Infoscan with your WMS or ERP system
370 000 rub.
Order Now
Иконка руки — Инфоскан
SCROLL DOWN

Infoscan 3D 90

Инфоскан 3D 60 — Инфоскан Инфоскан 3D 60 — Инфоскан Инфоскан 3D 60 — Инфоскан Инфоскан 3D 60 — Инфоскан Инфоскан 3D 60 — Инфоскан
Инфоскан 3D — Инфоскан Инфоскан 3D 60 — Инфоскан Инфоскан 3D 60 — Инфоскан Инфоскан 3D 60 — Инфоскан Инфоскан 3D 60 — Инфоскан

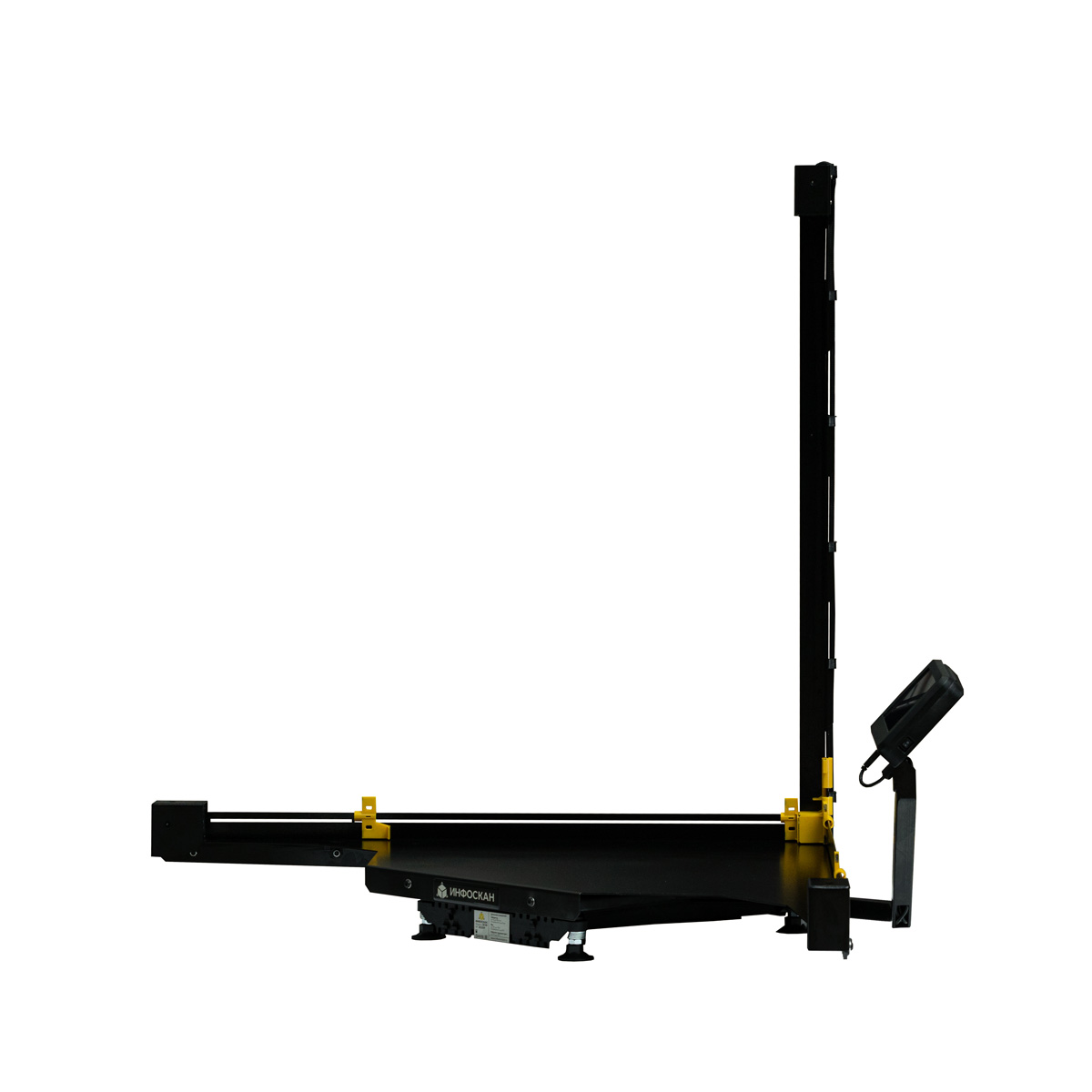

Infoscan 3D 90

Static Dimensioning System
Measurement accuracy certified by metrological
certificate № 83617-21
    Measures cubic and irregular shapes in 1 second, error-free. Laser sensors. Maximum dimensions: up to 85 cm. Maximum weight: up to 50 kg. Warranty: 1 year.
  • Measures cubic and irregular shapes in 1 second, error-free
  • Laser sensors
  • Maximum dimensions: up to 85 cm
  • Maximum weight: up to 50 kg
  • Warranty: 1 year
  • How to measure irregularly shaped objects?

Size

90 60

Optional Upgrades and Customization

370 000 rub. No VAT Order Now

Specifications

Ethernet port Yes
Wi-Fi (IPv6, 5GHz) Yes, depends on the configuration
Length / Width / Height 950 mm. / 950 mm. / 1050 mm.
Infoscan weight 20 kg.

Measurement Range

Ethernet port Yes
Measuring sensor Laser
Number of sensors 3
Length/Width/Height 10 to 850 mm
Dimensional accuracy ±3mm
Maximum object weight Up to 50 kg
Weight measurement accuracy ±10 g
Weighing module ТВ-S-32.2 / ТВ-S-60.2
Measurement speed 1-2 seconds per measurement
Data input USB
Power supply 12V / 220V
Operating temperature 5°C to 40°C

Custom Infoscan Production

We can manufacture an Infoscan tailored to your specifications.
We’re open to discussing any custom requests for changes in design and functionality,
including color, size, and construction.

Discuss a Custom Order

Device Display

  • 7-inch touchscreen Intuitive
  • user-friendly interface
Монитор Инфоскана

Weighing Scale

  • The weight data of the cargo is determined using a reliable weighing module from the leading Russian manufacturer of electronic scales. MASSA-K.
  • Measurement range: Up to 50 kg
Весовая платформа Инфоскана

Sensors

  • The Infoscan 3D is equipped with three laser sensors for measuring the dimensions of cargo.
  • Measurement range: Up to 850 mm
  • Measurement speed: 1-2 seconds
  • Each sensor is housed in a durable steel protective casing.

Frame

  • The device body is made of high quality steel, covered with wear-resistant powder coating.
  • Steel: 2 mm.
  • Wear-resistant coating
Корпус Инфоскана

Additional equipment

Mobile Table

  • Is it inconvenient to carry items to the Infoscan? We've designed a mobile table to solve this problem. With this table, you can effortlessly move the Infoscan around your workspace.
  • Load capacity: Up to 150 kg
  • Rubber locking casters
  • Wheel locking mechanism
Иконка воспроизведения | <br /> <b>Notice</b>: Undefined variable: config in <b>/home/inf-tec/web/infoscansize.com/public_html/assets/includes/template/html/parts/table.php</b> on line <b>19</b><br />
See the Mobile Table in Action 3:55
Мобильный стол для Инфоскана

External Power Supply

  • The uninterruptible power supply unit mounted on the mobile table provides up to eight hours of continuous operation for the Infoscan Camera in standalone mode.
  • Battery life: Up to 8 hours of continuous use
  • Battery capacity: 7000 mAh
  • Charging: Powered via a 220V outlet
Мобильный стол для Инфоскана

How Infoscan 3D measures objects
regular and irregular shape

Как измерить блок питания? Как узнать ВГХ? — Инфоскан
Video presentation of Infoscan 3D 90
Как измерить коробку из-под блока питания? Как узнать ВГХ? — Инфоскан
Measuring objects of different shapes on Infoscan 3D 90
Как измерить док станцию? Как узнать ВГХ? — Инфоскан
Production process Infoscan 3D 90
